Easy BYOD and Conferencing for Huddle Rooms.
HDMI and USB extender.
Bring together the best of both worlds.
Ready for Zoom, Skype for Business, Microsoft Teams, Cisco Webex, BlueJeans, GoToMeeting, and more.
Enhance collaboration and productivity with your preferred UC platform..
Great for interactive displays too.
Deliver remote mouse and keyboard control with ease.
Additional Features

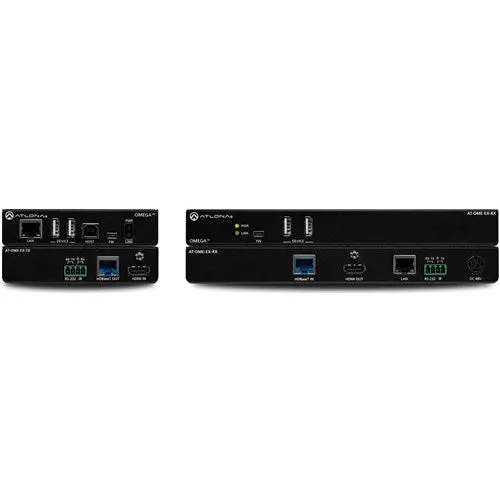

The Atlona AT-OME-EX-KIT is an HDBaseT extender for video, control, Ethernet, and USB over distances up to 330 feet (100 meters). The OME-EX-KIT is part of the Omega™ Series of integration products for modern AV communications and collaboration.
Supports any control signal
The OME-EX-KIT extends IP, RS-232, and IR control signals, offering many possibilities for remotely interfacing a source or display with a control system, or just a handheld IR remote.
Easy to install discreetly
The transmitter and receiver are low-profile and can easily be installed with minimal visibility under at a table and behind a wall-mounted display. Surface mounting hardware is included.
Remote device powering
The transmitter is powered remotely by the receiver over the HDBaseT cable link. This greatly simplifies installation at a meeting table or any other location, without the need for local AC power.
HDCP 2.2 compliant
The OME-EX-KIT adheres to the latest specification for High-bandwidth Digital Content Protection, ensuring compatibility with HDCP 2.2 compliant sources, displays, and other equipment.

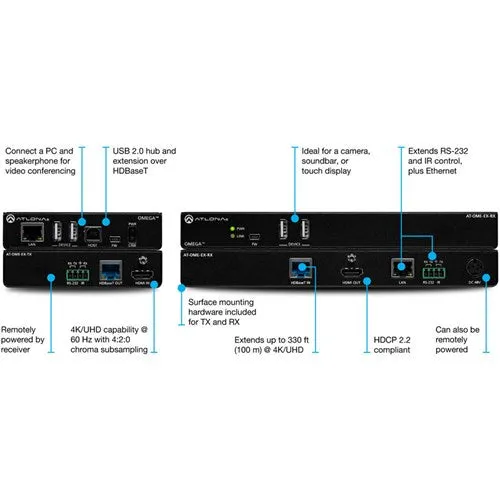

PRODUCT HIGHLIGHTS
- HDBaseTTM extender kit for HDMI®, Ethernet, power, control, and USB
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Transmitter powered by receiver via PoE (Power over Ethernet
| GENERAL INFORMATION | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-EX-KIT |
| Manufacturer Website Address | |
| Brand Name | Atlona |
| Product Line | Omega |
| Product Name | HDBaseT TX/RX for HDMI with USB |
| Product Type | Video Extender Transmitter/Receiver |
| TECHNICAL INFORMATION | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 330 ft |
| VIDEO | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| INTERFACES/PORTS | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 7 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| MEDIA & PERFORMANCE | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| PHYSICAL CHARACTERISTICS | |
| Transmitter Height | 1.02" |
| Transmitter Width | 4.29" |
| Transmitter Depth | 3.50" |
| Receiver Height | 1.02" |
| Receiver Width | 8.62" |
| Receiver Depth | 5.98" |
| Transmitter Weight (Approximate) | 14.32 oz |
| Receiver Weight (Approximate) | 1.92 lb |
| MISCELLANEOUS | |
| Package Contents | 1 x Transmitter 1 x Receiver |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WARRANTY | |
| Limited Warranty | 10 Year |
| ITEM DETAILS | |
| Model Number | AT-OME-EX-KIT |
| Brand | Atlona |
| Category | Signal Distribution/UTP Extension |
| Mfr ID | ATLONA |
| UPS Shippable | Y |
| Shipping Weight | 4.6 |
| UPC Code | 846352006105 |
